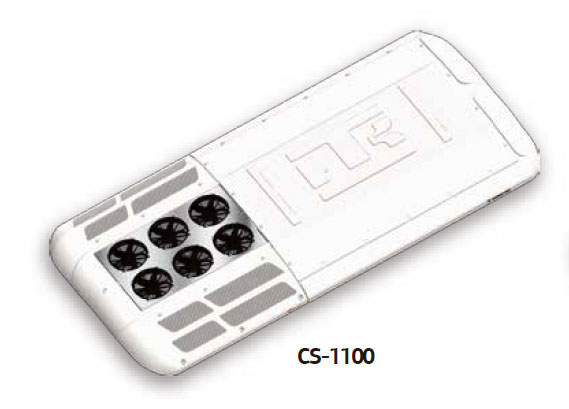

SPECIFICATIONS | CS-1100 |
Rated Cooling Capacity (kW) | 33 |
Max Cooling Capacity (kW) | 43 |
Refrigerant | R-134a |
Refrigerant Charge (kg, approx) | 6.0 |
Compressor | 4G |
Evaporator Air Flow (m3/h) | 5,600 |
Current (A, 27VDC) | 117 |
Dimension (L*W*H, mm) | 3,855*1,900*225 |
Weight (kg) | 195 |

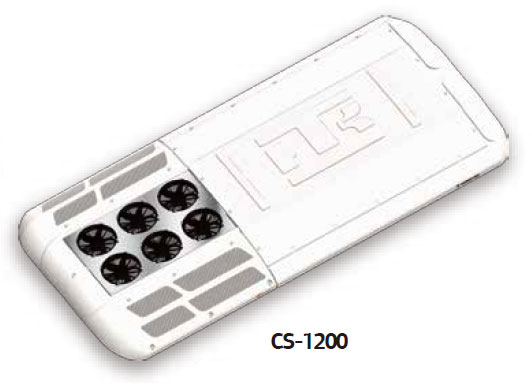

SPECIFICATIONS | CS-1200 |
Rated Cooling Capacity (kW) | 36 |
Max Cooling Capacity (kW) | 45 |
Refrigerant | R-407C |
Refrigerant Charge (kg, approx) | 5.3 |
Compressor | X430 |
Evaporator Air Flow (m3/h) | 5,600 |
Current (A, 27VDC) | 117 |
Dimension (L*W*H, mm) | 3,855*1,900*225 |
Weight (kg) | 195 |
SPECIFICATIONS | CF-500 |
Rated Cooling Capacity (kW) | 14.6 |
Max Cooling Capacity (kW) | 18 |
Refrigerant | R-134a |
Refrigerant Charge (kg, approx) | 2.2 |
Compressor | TK31 |
Evaporator Air Flow (m3/h) | 2,900 |
Current (A, 27VDC) | 48 |
Dimension (L*W*H, mm) | 2,780*1,480*220 |
Weight (kg) | 115 |
SPECIFICATIONS | CF-800 |
Rated Cooling Capacity (kW) | 20 |
Max Cooling Capacity (kW) | 24 |
Refrigerant | R-134a |
Refrigerant Charge (kg, approx) | 2.6 |
Compressor | 4T |
Evaporator Air Flow (m3/h) | 3,600 |
Current (A, 27VDC) | 70 |
Dimension (L*W*H, mm) | 2,600*1,800*220 |
Weight (kg) | 142 |
SPECIFICATIONS | CF-1000 |
Rated Cooling Capacity (kW) | 29 |
Max Cooling Capacity (kW) | 38 |
Refrigerant | R-134a |
Refrigerant Charge (kg, approx) | 4.4 |
Compressor | X430 / 4N |
Evaporator Air Flow (m3/h) | 5,000 |
Current (A, 27VDC) | 96 |
Dimension (L*W*H, mm) | 2,818*1,900*196 |
Weight (kg) | 165 |
