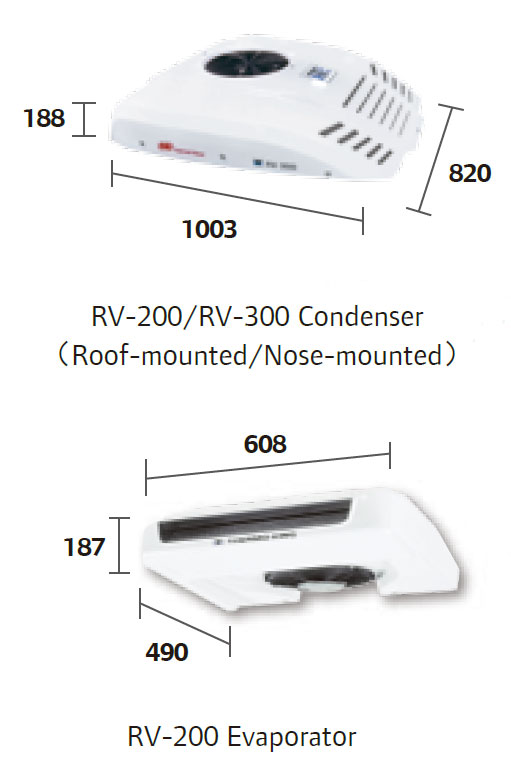

SPECIFICATIONS | RV-200 | ||
Temp. Range | -25°C - +30°C | ||
Refrigerant | R-404A | ||
Charge (kg) | 1.10 (TK08 compressor) |
1.15 (TK15 compressor) |
|
COMPRESSOR | |||
Model | TK08 | TK15 | |
Number of Cylinder | 6 | 6 | |
Displacement (cm3) | 82 | 146 | |
COOLING CAPACITY | A.T.P. U.N. Standard @30°C (Ambient) | ||
Engine Power | 0°C | 2,100 | 2,300 |
-20°C | 820 | 1,200 | |
COOLING CAPACITY | A.R.I. U.S. Standard @38°C (Ambient) | ||
Engine Power | 0°C | 2,000 | 2,200 |
-18°C | 800 | 1,150 | |
EVAPORATOR BLOWER PERFORMANCE | |||
Flow rate (@ 0 static pressure, m3/h) | 700 | ||
Velocity (m/s) | 3.0 | ||
TOTAL CURRENT COMSUMPTION ON THE ROAD (A) | |||
12 VDC | 30 | ||
24 VDC | 15 | ||
WEIGHT (kg, approximate) | |||
Condenser | 24 (roof-mounted), 23 (nose-mounted) |
||
Evaporator | 9 | ||
Compressor | 4.1 (TK08), 4.3 (TK15) |
Note: Refrigerant charge listed is for reference. Vehicle and piping configurations determine correct charge weights.

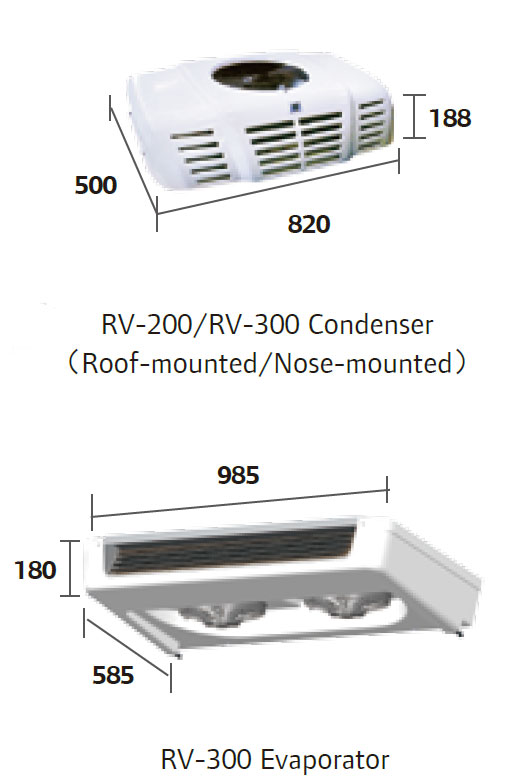

SPECIFICATIONS | RV-300 | |
Temp. Range | -25°C - +30°C | |
Refrigerant | R-404A | |
Charge (kg) | 1.2 | |
COMPRESSOR | ||
Model | TK15 | |
Number of Cylinder | 6 | |
Displacement (cm3) | 146 | |
COOLING CAPACITY | A.T.P. U.N. Standard @30°C (Ambient) | |
Engine Power | 0°C | 3,500 |
-20°C | 1,850 | |
COOLING CAPACITY | A.R.I. U.S. Standard @38°C (Ambient) | |
Engine Power | 0°C | 3,300 |
-18°C | 1,740 | |
EVAPORATOR BLOWER PERFORMANCE | ||
Flow rate (@ 0 static pressure, m3/h) | 1,500 | |
Velocity (m/s) | 3.3 | |
TOTAL CURRENT COMSUMPTION ON THE ROAD (A) | ||
12 VDC | 36 | |
24 VDC | 18 | |
WEIGHT (kg, approximate) | ||
Condenser | 24 (roof-mounted), 23 (nose-mounted) |
|
Evaporator | 15 | |
Compressor | 4.3 |
Note: Refrigerant charge listed is for reference. Vehicle and piping configurations determine correct charge weights.

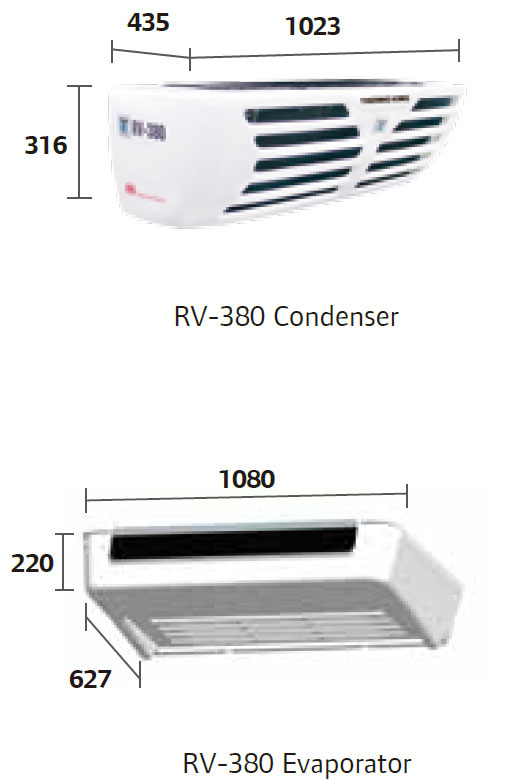

SPECIFICATIONS | RV-380 | |
Temp. Range | -25°C - +30°C | |
Refrigerant | R-404A | |
Charge (kg) | 1.8 | |
COMPRESSOR | ||
Model | TK16 | |
Number of Cylinder | 6 | |
Displacement (cm3) | 163 | |
COOLING CAPACITY | A.T.P. U.N. Standard @30°C (Ambient) | |
Engine Power | 0°C | 4,050 |
-20°C | 2,300 | |
COOLING CAPACITY | A.R.I. U.S. Standard @38°C (Ambient) | |
Engine Power | 0°C | 3,800 |
-18°C | 2,200 | |
EVAPORATOR BLOWER PERFORMANCE | ||
Flow rate (@ 0 static pressure, m3/h) | 1,500 | |
Velocity (m/s) | 3.3 | |
TOTAL CURRENT COMSUMPTION ON THE ROAD (A) | ||
12 VDC | 36 | |
24 VDC | 18 | |
WEIGHT (kg, approximate) | ||
Condenser | 30 | |
Evaporator | 18 | |
Compressor | 4.7 |
Note: Refrigerant charge listed is for reference. Vehicle and piping configurations determine correct charge weights.<

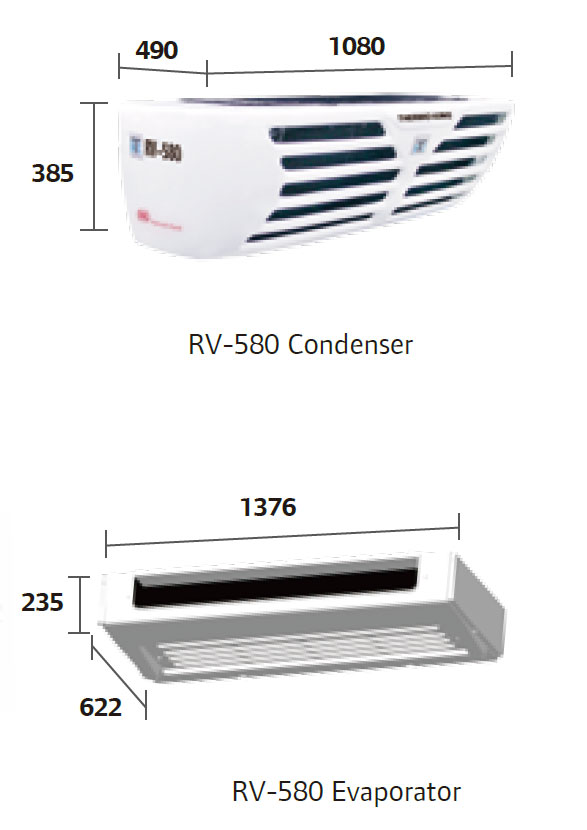

SPECIFICATIONS | RV-580 | |
Temp. Range | -25°C - +30°C | |
Refrigerant | R-404A | |
Charge (kg) | 2.5 | |
COMPRESSOR | ||
Model | TK16 | |
Number of Cylinder | 6 | |
Displacement (cm3) | 163 | |
COOLING CAPACITY | A.T.P. U.N. Standard @30°C (Ambient) | |
Engine Power | 0°C | 5,050 |
-20°C | 2,550 | |
COOLING CAPACITY | A.R.I. U.S. Standard @38°C (Ambient) | |
Engine Power | 0°C | 4,900 |
-18°C | 2,520 | |
EVAPORATOR BLOWER PERFORMANCE | ||
Flow rate (@ 0 static pressure, m3/h) | 2,500 | |
Velocity (m/s) | 3.0 | |
TOTAL CURRENT COMSUMPTION ON THE ROAD (A) | ||
12 VDC | 44 | |
24 VDC | 22 | |
WEIGHT (kg, approximate) | ||
Condenser | 35 | |
Evaporator | 30 | |
Compressor | 4.7 |
Note: Refrigerant charge listed is for reference. Vehicle and piping configurations determine correct charge weights.
