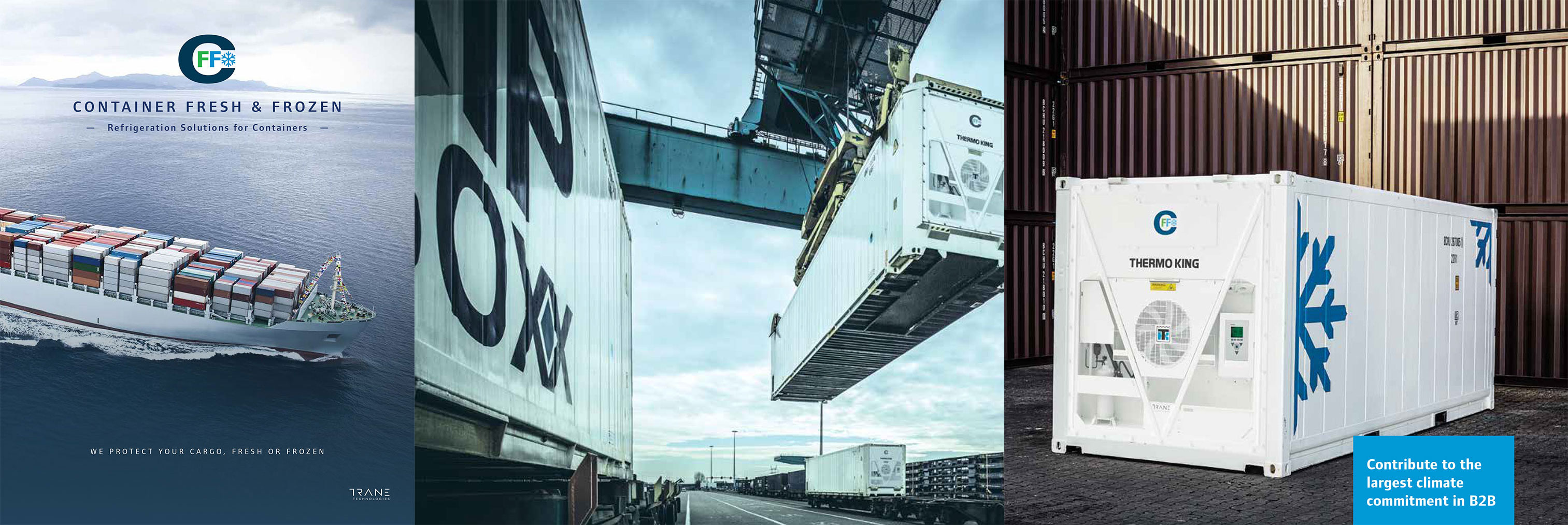

Container Fresh & Frozen

Thermo King creates innovative temperature control solutions that help your fleet perform more efficiently. CFF is the culmination of our deep container refrigeration knowledge acquired from the intermodal use of reefer units on rough roads and even rougher seas.

Our new CFF unit features improved temperature and humidity control, lower total cost of ownership and the implementation of a low pressure, lower GWP refrigerant. The results speak for themselves. The worldwide reference for marine reefer refrigeration.

SYSTEM NET COOLING CAPACITY - FULL COOL MAGNUM+ MODEL - AIR COOLED CONDENSING
460/230V	460/230V, 3 Phase, 60 Hz Power
	NET COOLING CAPACITY		POWER CONSUMPTION
	60 Hz Capacity B/hr	60 Hz Capacity kW	60 Hz Power kW
21.1°C (70°F)	59,921	17,572	10,849
1.7°C (35°F)	35,338	10,363	8,782
-17.8°C (0°F)	20,457	5,999	5,641
-28.9°C (-20°F)	11,086	3,251	4,544

System net cooling capacity with a 38°C (100°F) ambient air temperature.

EVAPORATOR AIRFLOW SPECIFICATIONS SYSTEM NET HEATING CAPACITY CONDENSING
CFF	460/230V, 3 Phase, 60 Hz Power			380/190V, 3 Phase, 50 Hz Power
	HEATING CAPACITY			HEATING CAPACITY
	Watts	Kcal/hr	BTU/hr	Watts	Kcal/hr	BTU/hr
	5,250	4,515	17,914	3,900	3,353	13,300

System net cooling capacity with a 38°C (100°F) ambient air temperature.
